Super Transfer Pump


Warranty on the head is voided if not proper cleanup is done after each use. Check Manual under Storing your pump.

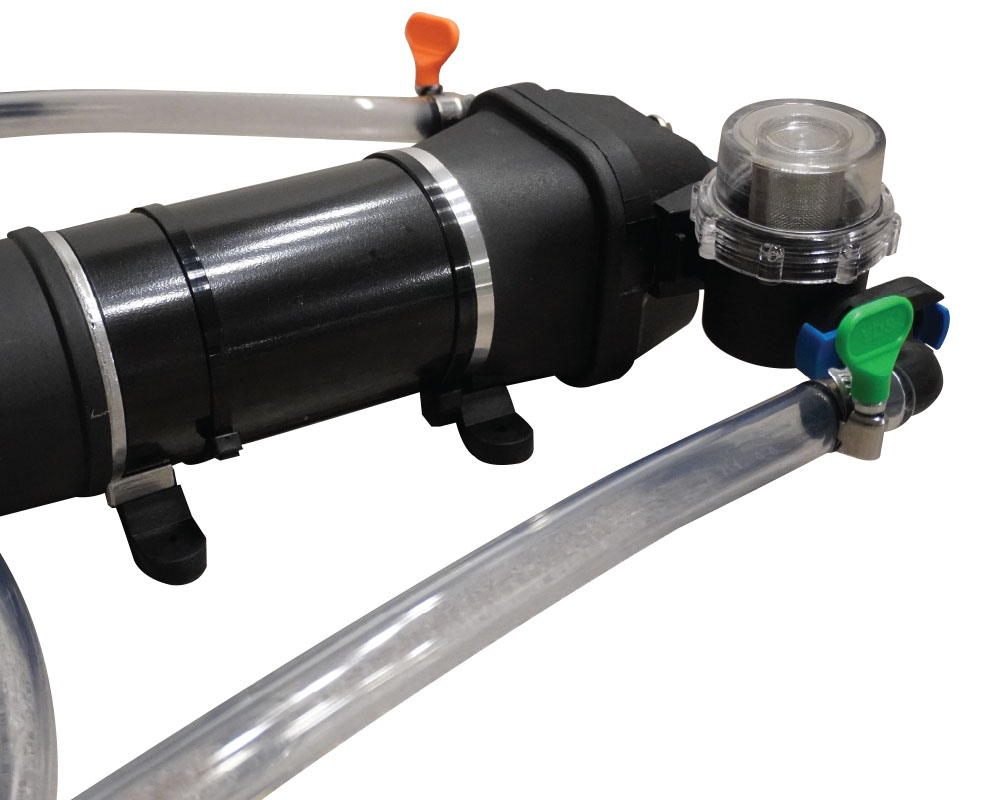

Our Super Transfer Pump is quick, compact and portable.

It is easy to install anywhere, since it comes with mountable shock-absorbing feet.

This self-priming unit is specially designed to save you time. You can transfer a 5-gallon carboy in approximately 1.5 minutes.

  • It flows at a rate between 1 to 3 GPM (gallons per minute.
  • Has an on/off switch with variable flow adjustment dial and a 5' electrical cord.
  • Comes with a pre-filter to prevent clogging of the pump head.
  • Comes with hoses, clamps and fittings.
  • BPA Free and made with Food Grade Materials.
  • Our new prefilter is easier to remove by hand (no tools required), easier to inspect when is clogged and does not affect at all the transfer speed/rate, less mess when you clean the screen on the go (as the liquid remains on the prefilter body) and creates cero turbulence on the wine (due to smaller prefilter surface that is a downfall). Strainer made of Stainless Steel 304.
  • New strainer – Sturdier and easier to install, without welds to keep debris and possible disassemble of the strainer to a minimum.

Can tolerate temperatures up to 212 F (100C), however, will need to use a different type of hose for high temperature as the ones provided with the pump will only stand up to 130F (54C).

Over time, the valves that move the wine may wear a little and the pump might not start sucking. This is normal. Getting the pump going is simple. Just fill the intake hose with water (prime the pump) and the pump should start immediately. Eventually, the pump head may need to be replaced.

IF YOU HAVE ANY QUESTIONS PLEASE CHECK THE MANUALS SECTION BELOW.


Packaged pump total weight: 3.5 Kg (7.7 Lbs).


Pump Specifications:
  • Flow rate from 1 to 3 gallons per minute.
  • Motor type AC.
  • 110 Volts, 0.5 Amp, 60 Hz.

The following parts are available:
Fitting 1/2" Hose Barb 90° Elbow

Spare elbow (90°) for the super transfer pump, could be connected in the outlet or inlet of the pump.

Pump Head

Spare pump head for super transfer pump.

Quick Disconnect Prefilter

Spare pre-filter for super transfer pump includes the elbow.

Spanner Wrench

Special tool to loose the clear lid of the pre-filter for super transfer pump (2019 and older models).
